Name: Hot Selling Portable Gas Detection Tubes for Co, NO2, CL2, CO2, H2, LEL PG610
Brand: Hot Selling Portable Gas Detection Tubes for Co, NO2, CL2, CO2, H2, LEL PG610
SKU: PG610
Price: 1 USD
Availability: InStock
Rating: 4.6 (147 reviews)

traits Galerie Description de produit Demandez une citation

traits

Caractéristiques

Model Number: PG610

color: orange, blue

Detecting Gas: combustible gas, toxic gases, Oxygen

Data Storage: 5000 articles

Work Temperature: - 40 degree ~ + 70 degree

Sensor: catalytic combustion sensor, electrochemical sensor

sensor life: 3-5year

Alarm: Sound, Light, Vibration

Informations de base

Model Number: PG610

Conditions de paiement et expédition

Packaging Details: Inner standard aluminium alloy box, outside carton box

Supply Ability: 1000 Piece/Pieces per Week

Description de produit

Hot sale portable gas detection tubes for CO, NO2, CL2, CO2, H2, LEL

Product Overview:

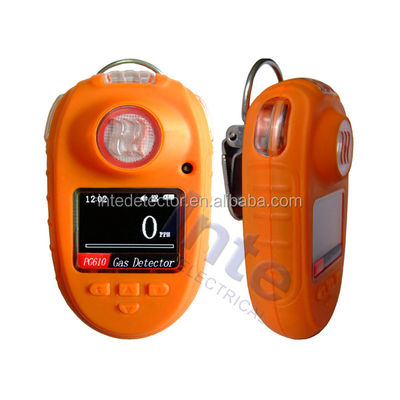

PG610 gas detector: it's portable and single gas detector, can detect a wide range of gases in operating site, widely used in municipal emergency rescue, oil chemical industry, metallurgy, coking, environmental protection and other industries.

Main features:

l Big OLED display, Highlighted, High-definition

l Automatically save the detecting data for 5000 articles

l Data progress bar display mode, can learn about the state of concentration

l Low power consumption , save energy, save electricity

l Real-time clock display function

l The key operation needs to input password to prevent wrong operation.

l Automatic calibration function, reduce the measuring error.

l Recover key data, avoid the loss of data

l Battery power real-time display, under-voltage hint, low pressure automatic shutdown

l Standard MINI-USB charging interface; charger is compatible with computer and cell phone's

l Charging protection function; when battery is full, charger will shut down automatically.

l Computer connection function; to realize data download, parameter setting (optional)

l Alarm type: audible and visual alarm, vibrating alarm

l STEL and TWA alarm

l Power on self-test function

l Adjust high and low alarm level

l Replaceable modularized sensor

Technical parameters:

Detecting Gas	combustible gas,toxic gas,oxygen
Measuring Range	0-100%LEL
Sampling Method	diffused or pump suction (external electric sampling pump)
Deviation	≤± 3% F.S
Respond Time	T90 < 30 s
Working Temperature	Combustible gas: - 40 °C ~ + 70 °C
Working Humidity	< 95% R.H. no condensation
Sensor service life	3-5 YEAR
Display Mode	OLED screen shows density, time, battery power, Alarm state, percentage progress bar
Data Storage	5000 records
Upload Data	connected to computer via data line(optional)
Alarm Type	Light: wide-angle light emitting diode Sound: 90 Db humming; when concentration increased, frequency increases Vibration: oscillator speed of 1300 r/min
Working Voltage	DC3.6 V lithium ion battery, 1000 mAh
Charging Time	4 h ~ 6 h
Working Time	combustible gas more than 8 h (continuous); Toxic gas more than 72 h (continuous)
Protection Class	IP66
Weight	140 g
Appearance Size	98 mm × 60 mm × 24 mm

Standard configuration:

instrument box, gas detector, specifications, certificate of approval, warranty card, charger, gas hood

PG610 Diagram

Product Information Chart

Product Model	Detected Gas	Measuring range	Resolution	Respond Time	Sensor service life
PG610-CO	CO	0-1000ppm	1ppm	≤20 s	2-3 year
PG610-O₂	O₂	0-30%VOL	0.1%vol	≤20 s	2-3 year
PG610-O₃	O₃	0-10ppm	0.1ppm	≤30s	2-3 year
PG610-H₂S	H₂S	0-100ppm	1ppm	≤30 s	2-3 year
PG610-H₂	H₂	0-1000ppm	1ppm	≤30 s	2-3 year
PG610-CL₂	CL₂	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-NH₃	NH₃	0-200ppm	1ppm	≤30 s	2-3 year
PG610-SO₂	SO₂	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-NO	NO	0-250ppm	1ppm	≤30 s	2-3 year
PG610-NO₂	NO₂	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-CH₂O	CH₂O	0-50ppm	0.01ppm	≤30 s	2-3 year
PG610-HCL	HCL	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-HCN	HCN	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-ETO	ETO	0-100ppm	1ppm	≤30 s	2-3 year
PG610-CLO₂	CLO₂	0-10ppm	0.1ppm	≤30 s	2-3 year
PG610-CO2	CO2	0-5.00%vol	0.01%vol	≤30 s	≥5 year
PG610-EX	Combustible gas	0-100%LEL	1%LEL	≤30 s	3-5 year
As for unlisted detected gas and measuring range, please contact with our company
